FireDaemon Pro 5 OEM Installation and Configuration

• No Serial Number Name or Serial Number is required to activate the software product
• Additional command-line arguments are available to automate the configuration of the product registry keys, executable program names, and help URLs.

TABLE OF CONTENTS

• Distribution ZIP File
• Installation Fast Track
  • Step 1: Prepare Microsoft Windows
  • Step 2: Choose A Product Name
  • Step 3: Create Folders and Copy Files
  • Step 4: Configure and Run FireDaemon Pro OEM
  • Step 5: Enable Interactive Services Detection
• FireDaemon Pro OEM Installation Limitations
• Command-Line Options
• Registry Keys
  • Product Registry Keys
  • User Preferences
  • GUI Window Placement and Column Sizing
  • Event Log
• Renaming Executables and DLLs
• Renaming Executables Ramifications
• Replacing Executable Application Icons
• Uninstalling FireDaemon Pro OEM
• Theming and Branding
• Files and Folders to Redistribute
• License Restrictions

Distribution ZIP File

FDO is distributed as a ZIP file only. It does not include an installer. The ZIP file contains 64-bit EXEs and DLLs, prerequisites, scripts, and default theme. The top-level contents of the ZIP file are below.

Installation Fast Track

You would typically automate this process.

Step 1: Prepare Microsoft Windows

Microsoft Windows needs to be deployed correctly to run FireDaemon Pro OEM successfully as follows:

1. Install Windows from an original Microsoft ISO, golden image, cloned image or equivalent. Do not deploy Pro OEM on Windows operating systems that have suffered an "in-place upgrade"

2. Ensure Windows has been fully patched. All Windows updates should be applied
3. Ensure EPP/EDR (i.e. antivirus/antimalware software) has been configured to whitelist the FireDaemon Pro OEM installation directory and executables
4. For air-gapped environments, ensure the required Root CA and Intermediate Certificates are installed in the local Windows certificate store
5. FireDaemon Pro services run by default using built-in system accounts. If you intend to use those accounts (e.g. LocalSystem) then ensure the system account locales are configured correctly for your region
6. Deploying a language pack for your locale to ensure that notification and error messages are displayed correctly on screen, in the Windows Event Log and FireDaemon Pro log files. You can do that with lpksetup.exe or Powershell LanguagePackManagement.

Step 2: Choose A Product Name

The default product name is "FireDaemon Pro OEM". An alternative name can be chosen but it must be used consistently throughout the installation process. For this guide, the default product name is denoted as <ProductName>. This customised name is used throughout the FDO application as well as in various file system folders and registry keys plus as the source name in the Windows Event Log.

Step 3: Create Folders and Copy Files

1. Log in to the computer as a local or domain administrator
2. Unpack the FireDaemon Pro OEM ZIP file to a temporary folder
3. Create the following folders:
   1. "C:\Program Files\<ProductName>"
   2. "%ProgramData%\<ProductName>\ServiceDefinitions"
   3. "%CommonProgramFiles%\<ProductName>\ServiceDefinitions"
4. Copy the Skin folder in its entirety to  C:\Program Files\<ProductName>
5. Copy the binaries contained within the x64 folder to C:\Program Files\<ProductName>
6. Copy the file CoreETW.man contained within the prerequisites folder to C:\Program Files\<ProductName>
7. Copy the file Default Template.xml contained within the %ProgramData%\<ProductName>\ServiceDefinitions folder to "%ProgramData%\<ProductName>\ServiceDefinitions"

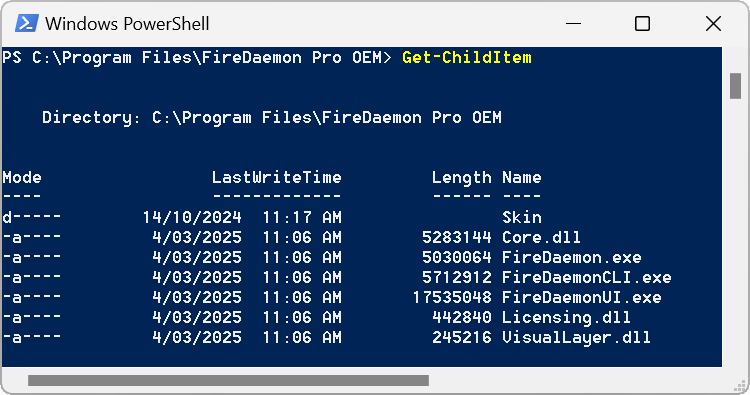

8. Once you have completed the steps above the FDO installation folder should contain the files and folders per the screenshot below (file sizes and date and time stamps may differ):



Step 4: Configure and Run FireDaemon Pro OEM

cd "C:\Program Files\<ProductName>"
FireDaemonCLI configure --product-name="<ProductName>"
wevtutil.exe im CoreETW.man /rf:"C:\Program Files\<ProductName>\Core.dll" /mf:"C:\Program Files\<ProductName>\Core.dll"
FireDaemonUI

Step 5: Enable Interactive Services Detection

On Windows Vista or later you can enable the Interactive Services Detection Service. If you deploy services with a GUI, then the GUI will be displayed on Session 0. Please consult this article on how to manually enable Interactive Services. The latest versions of Microsoft Windows have had Interactive Services Detection Service (UI0Detect) removed. You will need to deploy FireDaemon Zero and FireDaemon ZeroInput.

FireDaemon Pro OEM Installation Limitations

To avoid conflicts with current or future FireDaemon Pro installations, FDO should never be installed into the folders:

• “C:\Program Files\FireDaemon”
• “C:\Program Files\FireDaemon Pro”

FireDaemonCLI \
    configure \
    --product-name="FireDaemon Pro OEM" \
    --product-short-name="FDO" \
    --help-file-name="https://www.firedaemon.com/user-guides"

Registry Keys

When deploying FDO, the following registry keys will be created. Whilst these registry keys can be created manually, we recommend that you let FDO do the hard work of setting up the registry via the "configure" command and not set up the registry keys manually.

Product Registry Keys

The following registry keys are created as part of the installation process:

User Preferences

All global preference values are replicated and stored individually for each user by the FDO GUI in this registry key:

HKCU\Software\FireDaemon Technologies\<ProductName>\BCGWorkspace

The FireDaemon Pro GUI recalls the most recent application window placement and width of list columns and sorting. Those values are stored in these registry keys:

HKCU\Software\FireDaemon Technologies\<ProductName>\BCGWorkspace\ServiceListColumns
HKCU\Software\FireDaemon Technologies\<ProductName>\BCGWorkspace\WindowPlacement

Event Log

The Windows Event Log is configured via this registry key:

HKLM\SYSTEM\CurrentControlSet\Services\EventLog\Application\<ProductName>

Renaming Executables and DLLs

The FireDaemon executables (FireDaemon.exe, FireDaemonCLI.exe, FireDaemonUI.exe) can be renamed. To ensure that FDO recognises the new file names, the value of the ServiceExe registry setting listed above must be updated with the new file name. Additionally, when using the "configure" option described above, FireDaemon Pro OEM will automatically populate the ServiceExe registry setting with the new file name. For example, after renaming FireDaemon.exe to MyServiceApp.exe, and FireDaemonCLI.exe to MyServiceAppCLI.exe the command below will populate ServiceExe with MyServiceApp.exe.

MyServiceAppCLI configure

Renaming Executables Ramifications

If executables are renamed, the only services that will be displayed in the FireDaemon Pro OEM GUI will be those where the  Service setting matches the ImagePath registry setting found in the service configuration itself, typically located under HKLM\SYSTEM\CurrentControlSet\Services\<ServiceName>. If you initially use the default name (i.e. FireDaemon.exe) and then later rename it and update the ServiceExe registry setting, any pre-existing services will no longer be recognised as FireDaemon Pro services and will be hidden in the FireDaemon Services list in the FireDaemon Pro OEM GUI. Those services will be visible in the Windows Services list in the FireDaemon Pro OEM GUI.

Replacing Executable Application Icons

The application icons executables can be replaced. Replacing the icons (e.g. via Resource Hacker) will cause the digital certificates to be removed from the executables. You will need to organise your own EV Authenticode code signing certificate and re-sign the executables accordingly with the Windows Software Development Kit SignTool utility.

Uninstalling FireDaemon Pro OEM

To uninstall FDO, ensure that you stop all FDO services in advance, and then uninstall them before deconfiguring the product. To fully uninstall FDO (where the <ProductName> is "FireDaemon Pro OEM", follow these steps:

cd "C:\Program Files\FireDaemon Pro OEM
FireDaemonCLI stop-all
FireDaemonCLI uninstall-all
FireDaemonCLI deconfigure
wevtutil um CoreETW.man
cd ..
rmdir /s "C:\Program Files\FireDaemon Pro OEM"
rmdir /s "%ProgramData%\FireDaemon Pro OEM"
rmdir /s "%CommonProgramFiles%\FireDaemon Pro OEM"

Theming and Branding

FDO is highly customisable from a theming and branding perspective. Please refer to the Theming and Branding guide for more information.

Files and Folders to Redistribute

The following files should be minimally included in your installer or deployed on your platform. The files folders in the table below must all reside in the same directory:

License Restrictions

The FireDaemon End User License Agreement allows the licensee to redistribute FDO royalty-free as part of a product or platform. It is prohibited for FDO to be redistributed or sold as a standalone product or to be made available for public download.
